CSWA 2-10 Part, Solve the problem

2-10-1

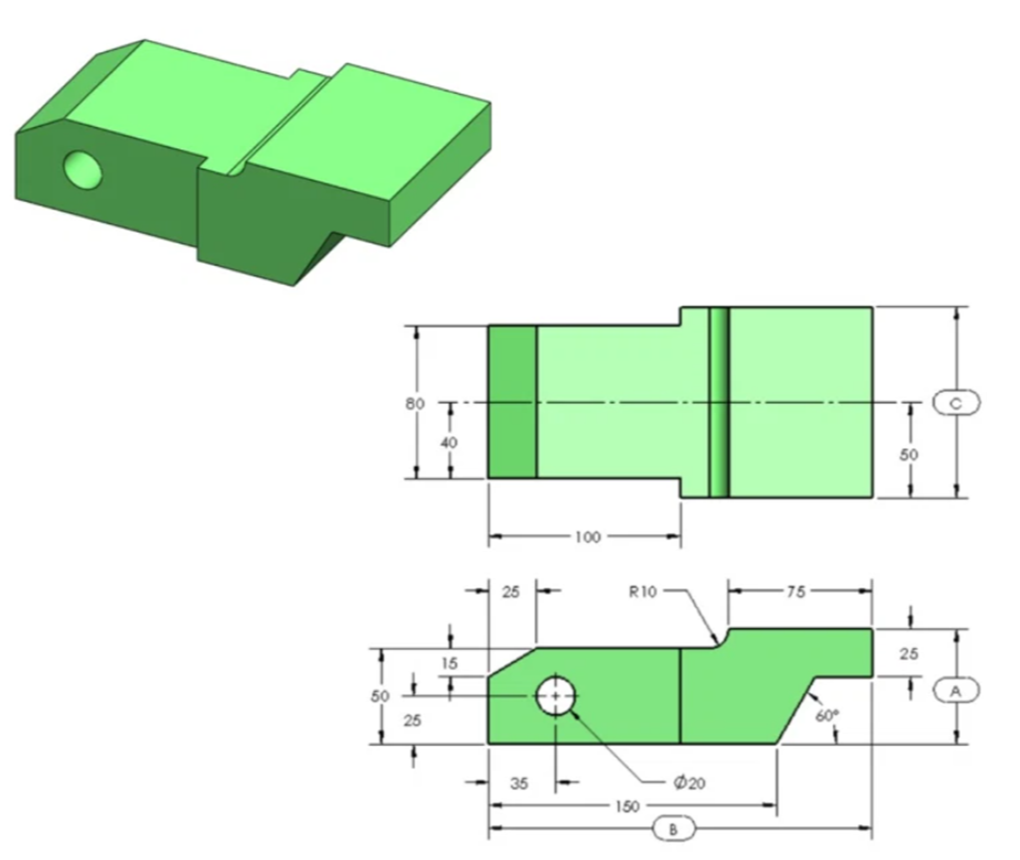

Quession 01 : Model the part shown in the figures provided, Use the following information.

Unit system : MMGS(Millimeter, gram, Second)

Decimal places : 2

Part origen : Arbitrary(Defalut)

Material : Aluminuim 1060

Density : 2700 kg/m^3

All holes through all unless shown otherwise-Use the following parameters and equations which correspond to the dimensions labeled in the images.

(별도 지시가 없는 한, 모든 구멍은 전체를 관통합니다. 이미지에 표기된 치수에 해당하는 다음 매개변수와 방정식을 사용하십시오/사용하세요.)

A = 60mm

B = 200mm

C = 100

What is the overall mass of the part (gram)?

a) 175.95     b) 2448.25    c) 2152.92     d) 685.32























Q1. Ans 2152.92 gram





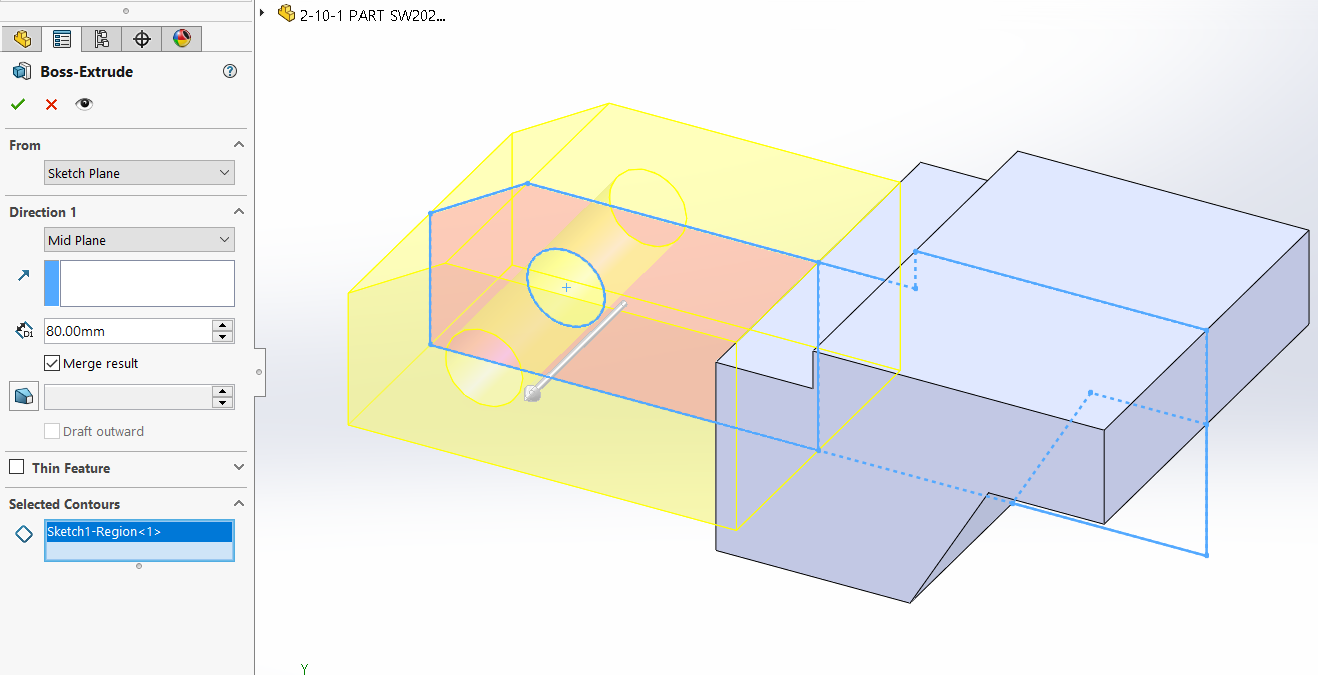

2-10-2





Arc 3 point

End point -> End point -> Center point









Cut-Extrude

Derection 1 -> Through All - both

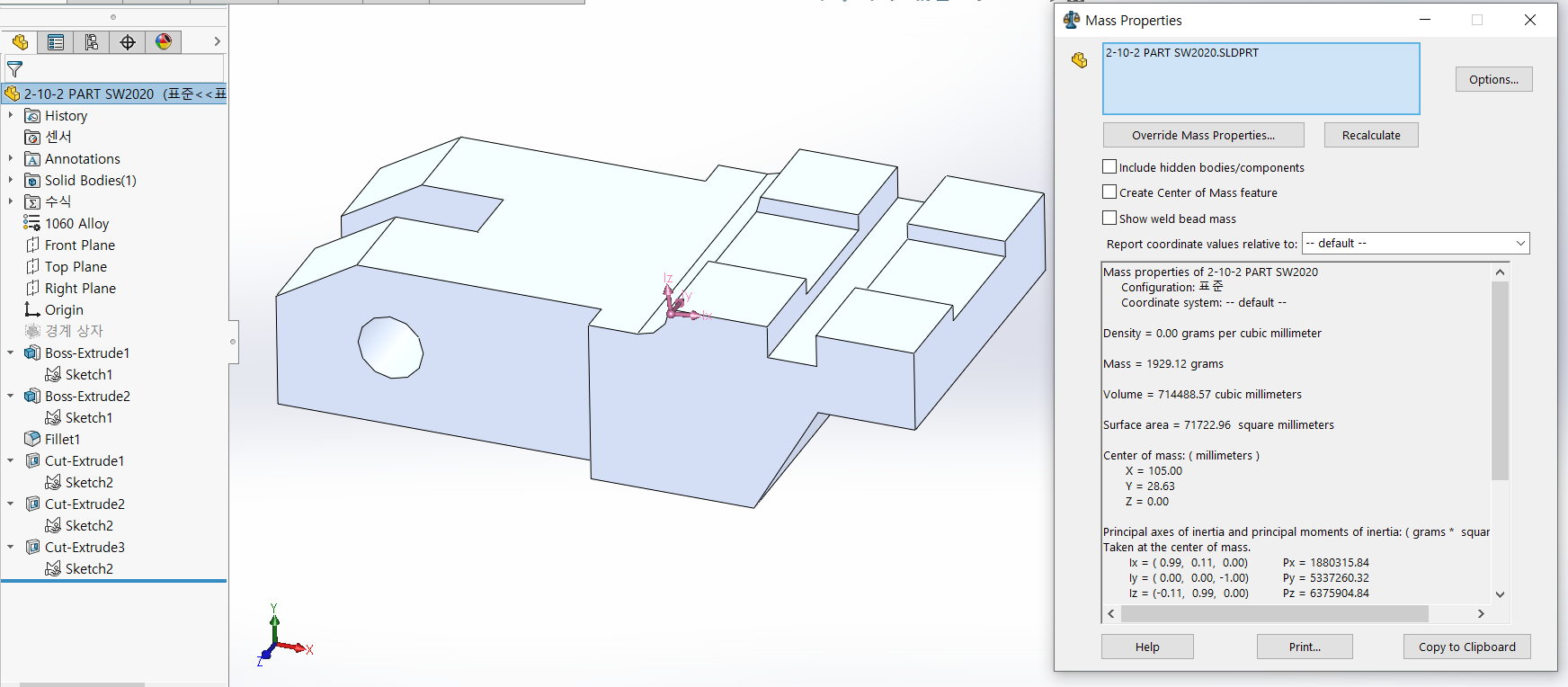

Q2. Ans 1929.12 gram



2-10-3











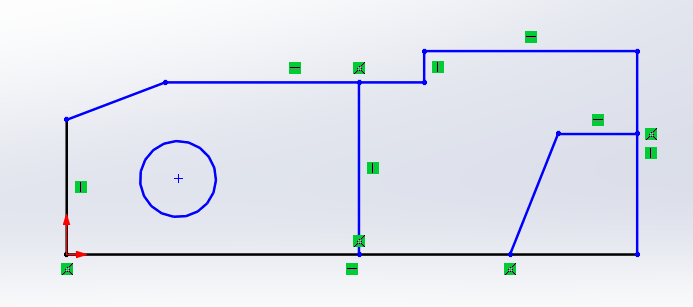

추가적인 선을 그린다.

Add additional lines to the sketch











Q3. Ans 1345.53 gram
