CSWA 2-2 Part, Solve problem

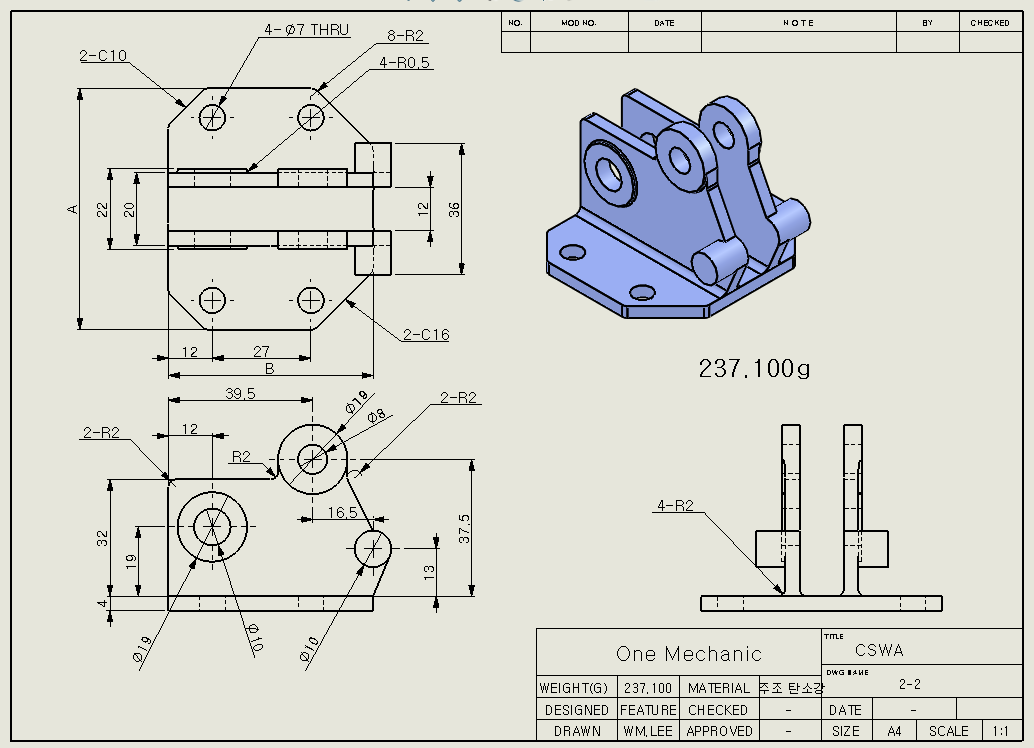

Question : Model the part shown in the figures provided. Use following information.

Unit system : MMGS (Millimeter, Gram, Second)

Decimal places : 2

Part origin : Arbitrary

A = 66

B = 56

Material : Cast Carbon Steel



What is the overall mass of the part in grams?

A : 237.10

B : 205.19

C : 305.66

D : 442.33

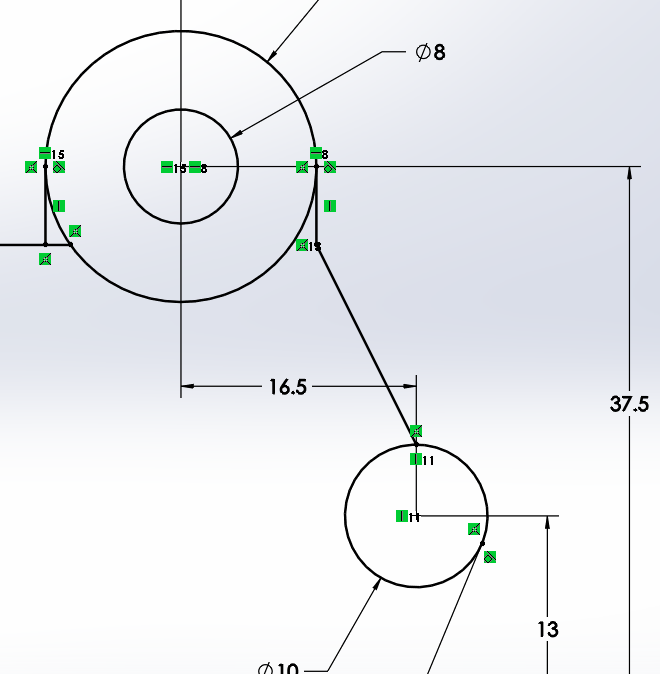

멀티스케치를 이용한다.



일치

접선
