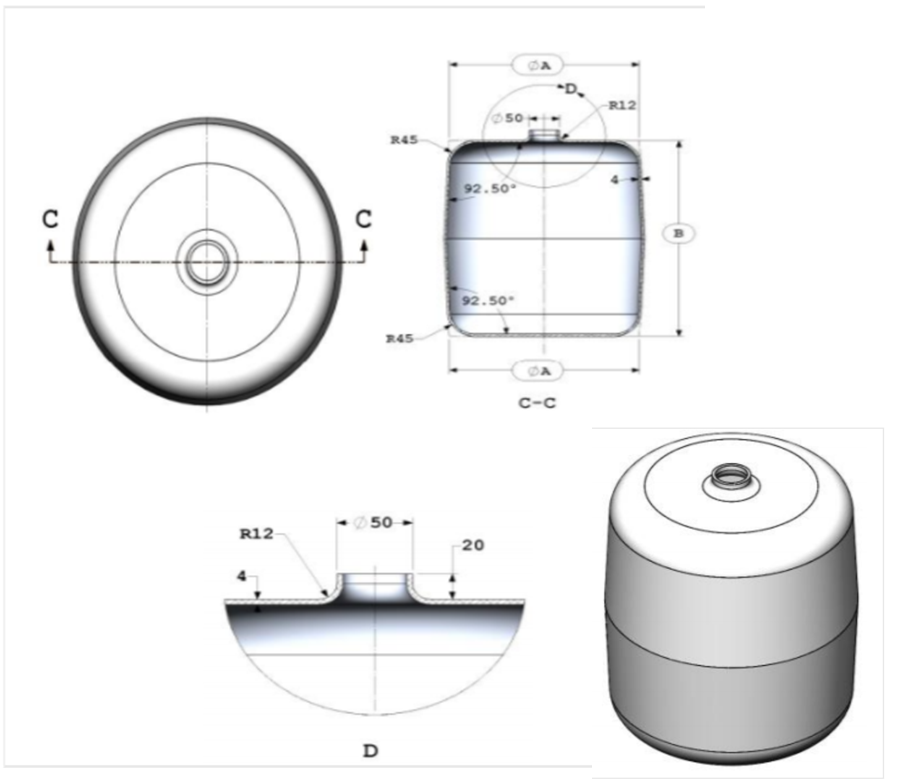

Quession 01 : Model the part shown in the figures provided, Use the following information.
Unit system : MMGS(Millimeter, gram, Second)
Decimal places : 2
Part origen : Arbitrary(Defalut)
Material : Aluminium 1060
Density : 2700 kg/m^3
All holes through all unless shown otherwise-Use the following parameters and equations which correspond to the dimensions labeled in the images.
(별도 지시가 없는 한, 모든 구멍은 전체를 관통합니다. 이미지에 표기된 치수에 해당하는 다음 매개변수와 방정식을 사용하십시오/사용하세요.)
A = 417.5mm
B = 490mm
What is the overall mass of the part (gram)?
a) 9429.42 b) 5102.53 c) 9653.16 d) 4760.38
회전명령어를 사용하기 위해 중심선을 그려줘야 한다.
Draw a centerline to use the Revolve feature
Revolve
Q1. Ans 9429.42 gram
2-13-2
10103.96~99g 정확하게 .98이 안나온는 경우가 있다.
모서리선과 바깥선 사이의 거리는 12.
The distance between the edge and the outline is 12.

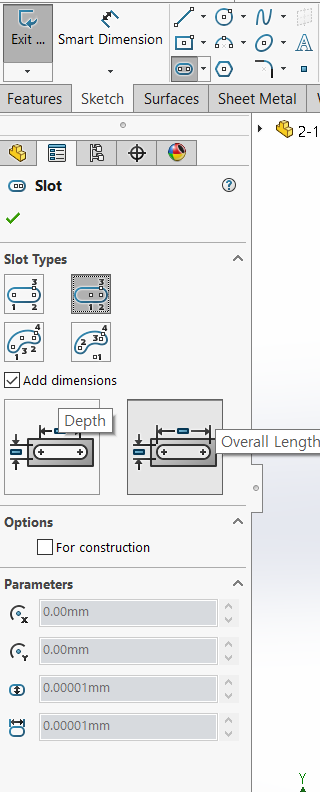

Sketch -> Slot -> Overall length
Q2. Ans 10103.99 gram
