CSWA 2-6 Part, Solve the problem

2-6-1

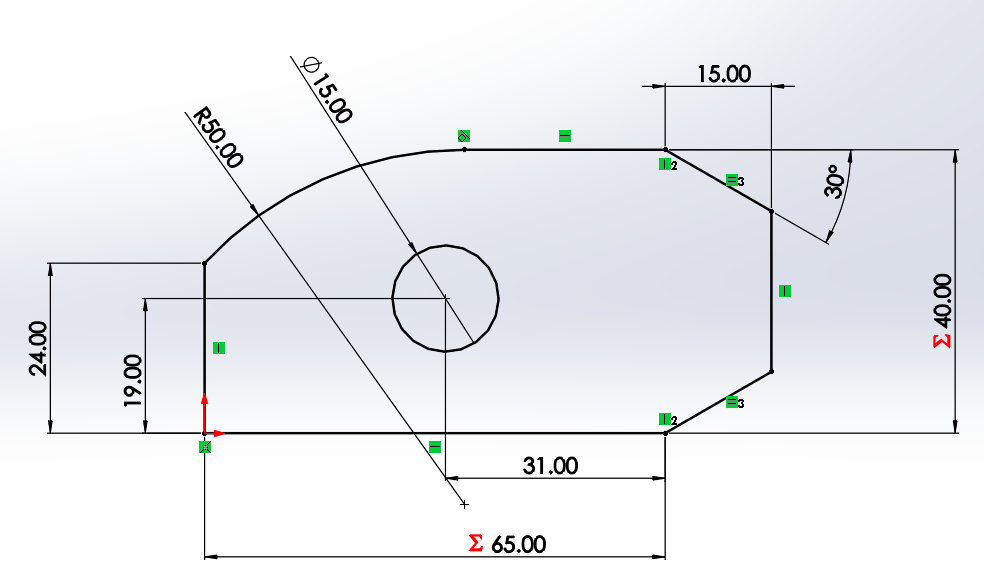

Quession 01 : Model the part shown in the figures provided, Use the following information.

Unit system : MMGS(Millimeter, gram, Second)

Decimal places : 2

Part origen : Arbitrary(Defalut)

Material : Aluminium Alloy 1060

Density : 2700 kg/m^3

All holes through all unless shown otherwise-Use the following parameters and equations which correspond to the dimensions labeled in the images.

(별도 지시가 없는 한, 모든 구멍은 전체를 관통합니다. 이미지에 표기된 치수에 해당하는 다음 매개변수와 방정식을 사용하십시오/사용하세요.)

A = 58mm

B = 40mm

C = 65 degree

What is the mass of the part (gram)?

a) 496.67     b) 144.58    c) 603.33     d) 424.76







Equations B & C







Ans : 424.76 gram





2-6-2













Q2. Ans : 234.83 gram







2-6-3





Line -> Extends -> Trim









Cut-Extrude -> Direction1 -> Offset From Surface

2mm









Q3. Ans : 181.03 gram
